Insulating Panel
Isotec Pan is the insulating polyurethane panel covered with an embossed aluminium sheet, completing the Isotec range.
The panel improves the thermal resistance of the building envelope, increasing living comfort and delivering greater energy savings.
The Isotec Pan panel has a polyurethane core coated with embossed aluminium sheet on both the intrados and extrados.
Isotec Pan thicknesses
Isotec Pan Panel is available in the following thicknesses:
60 mm, 80 mm, 100 mm, 120 mm, 140 mm and 160 mm.

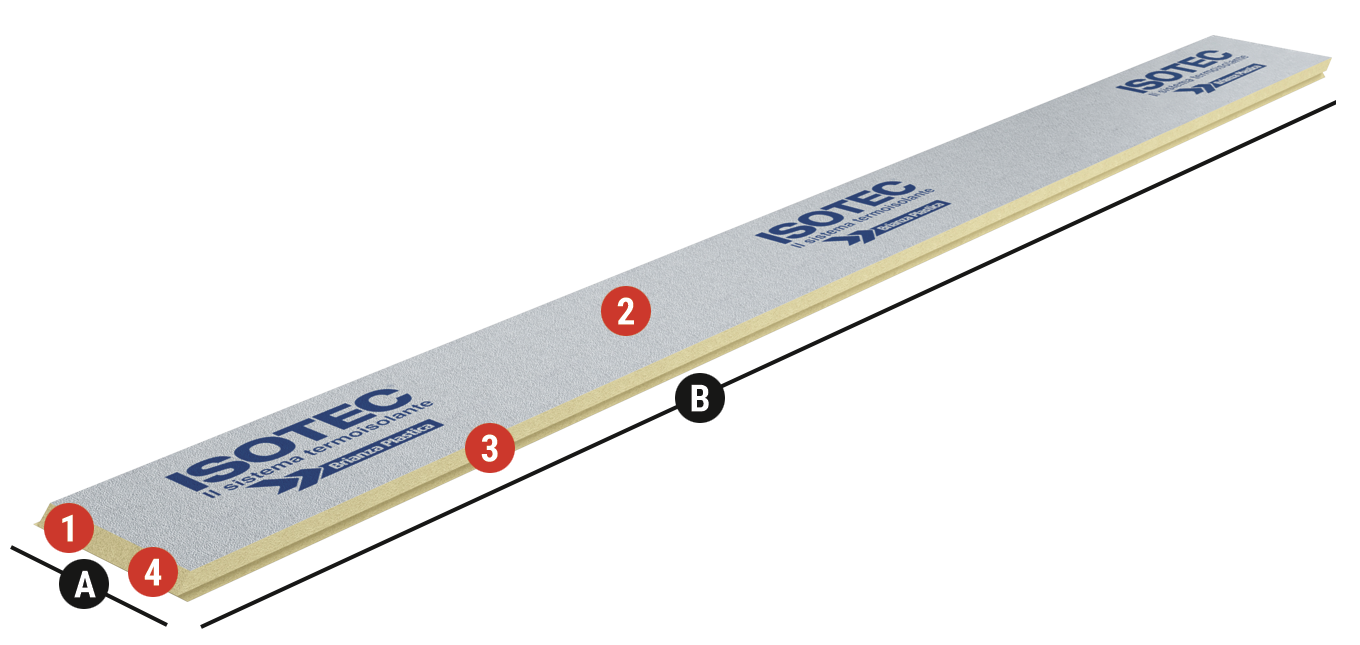

AStandard size: 690 mm
BFixed size: 3,900 mm
The Isotec Pan panel is made of self-extinguishing rigid polyurethane foam.
The Isotec Pan panel is clad on both sides with embossed aluminium sheet.
4
The side ends of the panels are cut into a dovetail shape to ensure continuous insulation.
The side ends of the panels are cut into a dovetail shape to ensure continuous insulation.
5
The Isotec Pan panel is shaped with opposing battens on the longitudinal sides that allow the panels to interlock seamlessly, thus eliminating the risk of thermal bridges.
The Isotec Pan panel is shaped with opposing battens on the longitudinal sides that allow the panels to interlock seamlessly, thus eliminating the risk of thermal bridges.
DECLARATION OF PERFORMANCE
Regulations, essential characteristics and performance of the product
BIM/CAD
